View ss8550 datasheet:

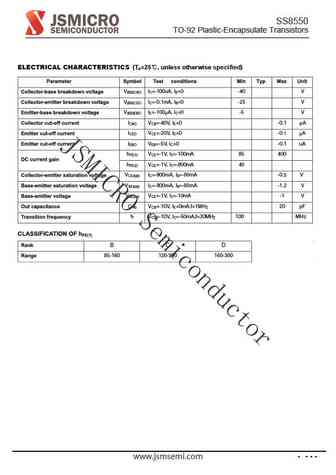

SS8550TO-92 Plastic-Encapsulate Transistors TRANSISTOR ( ) 1. EMITTER 2. BASE 3. COLLECTOREquivalent Circuit SS8550= Device codeTO-92 Bulk 1000pcs/BagSSS8550 Tape 2000pcs/BoxCollector-Base Voltage -40 V Collector-Emitter Voltage -25 VEmitter-Base Voltage -5 VCollector Current -Continuous -1.5 A Collector Power Dissipation mWThermal Resistance rom Junction o Ambient /WTJ, Operation Junction and Storage Temperature Range -55www.jsmsemi.com 1/6JSMICRO SemiconductorSS8550TO-92 Plastic-Encapsulate TransistorsELECTRICAL CHARACTERISTICS (Ta=25 , unless otherwise specified) V(BR)CBO IC=-100uA, IE=0 -40 VV(BR)CEO IC=-0.1mA, IB=0 -25 VV(BR)EBO IE=-100 A, IC=0 -5 VICBO VCB=-40V, IE=0 -0.1 A ICEO VCE=-20V, IE=0 -0. A IEBO VEB=-5V, IC=0 -0.1 uAhFE(1) VCE=-1V, IC=-100mA 85 400hFE(2) VCE=-1V, IC=-800mA 40VCE(sat) IC=-800mA, I
