View std13007f datasheet:

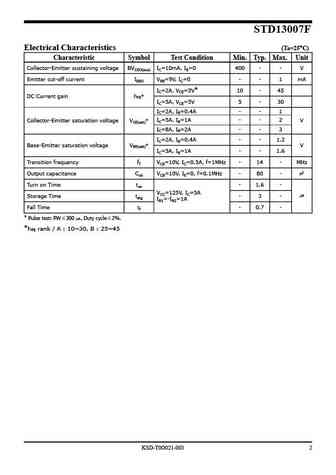

STD13007FNPN Silicon Power TransistorSWITCHING REGULATOR APPLICATIONS Features PIN Connection High speed switching C High Collector Voltage : VCBO = 700V Suitable for Switching Regulator and Motor Control BOrdering Information Type NO. Marking Package Code B C E ESTD13007F STD13007 TO-220F-3LAbsolute maximum ratings (Ta=25C) Characteristic Symbol Rating UnitCollector-Base voltage VCBO 700 VCollector-Emitter voltage VCEO 400 VEmitter-base voltage VEBO 9 VCollector current (DC) IC 8 ACollector current (Pulse) ICM 16 ABase current (DC) IB 4 ACollector Power dissipation (Tc=25) PC 40 WJunction temperature Tj 150 C Storage temperature Tstg -55~150 C Characteristic Symbol Typ. Max UnitJunction-case Rth(J-C) - 3.12Thermal /W resistance Junction-ambient Rth(J-a) - 62.5KSD-T0O021-003 1 STD13007FElectr
