View std13007p datasheet:

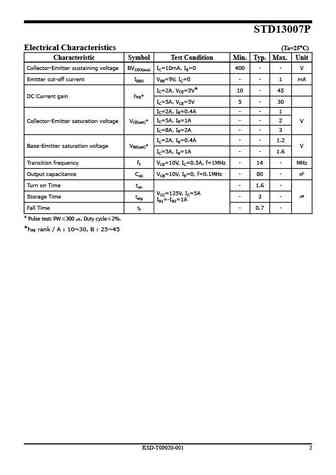

STD13007PNPN Silicon Power TransistorSWITCHING REGULATOR APPLICATIONS Features PIN Connection High speed switching C High Collector Voltage : VCBO = 700V Suitable for Switching Regulator and Motor Control BOrdering Information Type NO. Marking Package Code B C E ESTD13007P STD13007 TO-220ABAbsolute maximum ratings (Ta=25C) Characteristic Symbol Rating UnitCollector-Base voltage VCBO 700 VCollector-Emitter voltage VCEO 400 VEmitter-base voltage VEBO 9 VCollector current (DC) IC 8 ACollector current (Pulse) ICM 16 ABase current (DC) IB 4 ACollector Power dissipation (Tc=25) PC 87 WJunction temperature Tj 150 C Storage temperature Tstg -55~150 C Characteristic Symbol Typ. Max UnitJunction-case Rth(J-C) - 1.43Thermal /W resistance Junction-ambient Rth(J-a) - 88KSD-T0P020-001 1 STD13007PElectrical
