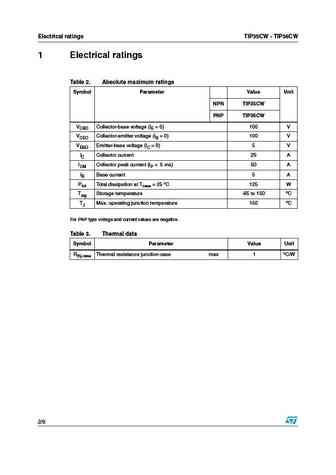

TIP35CWTIP36CWComplementary power transistors .Features Low collector-emitter saturation voltage Complementary NPN - PNP transistorsApplications General purpose32 Audio amplifier1TO-247DescriptionThe devices are manufactured in planar Figure 1. Internal schematic diagramstechnology with base island layout. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.Table 1. Device summary Order code Marking Package PackagingTIP35CW TIP35CWTO-247 TubeTIP36CW TIP36CWSeptember 2008 Rev 4 1/9www.st.com 9Electrical ratings TIP35CW - TIP36CW1 Electrical ratingsTable 2. Absolute maximum ratingsSymbol Parameter Value UnitNPN TIP35CWPNP TIP36CWVCBO Collector-base voltage (IE = 0) 100 VVCEO Collector-emitter voltage (IB = 0) 100 VVEBO Emitter-base voltage (IC
