View tip41-a-b-c datasheet:

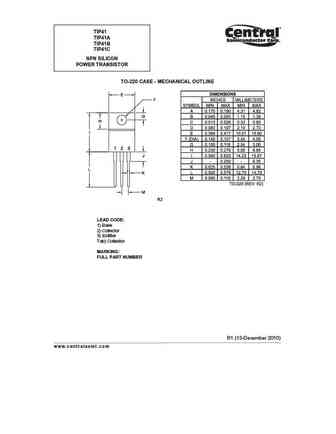

TIP41TIP41ATIP41Bwww.centralsemi.comTIP41CDESCRIPTION:NPN SILICONThe CENTRAL SEMICONDUCTOR TIP41 SERIESPOWER TRANSISTORtypes are NPN Epitaxial-Base Silicon Power Transistors designed for power amplifier and high speed switching applications.MARKING: FULL PART NUMBERTO-220 CASEMAXIMUM RATINGS: (TC=25C) SYMBOL TIP41 TIP41A TIP41B TIP41C UNITSCollector-Base Voltage VCBO 40 60 80 100 VCollector-Emitter Voltage VCEO 40 60 80 100 VEmitter-Base Voltage VEBO 5.0 VContinuous Collector Current IC 6.0 APeak Collector Current ICM 10 AContinuous Base Current IB 2.0 APower Dissipation PD 65 WPower Dissipation (TA=25C) PD 2.0 WOperating and Storage Junction Temperature TJ, Tstg -65 to +150 CELECTRICAL CHARACTERISTICS: (TC=25C unless otherwise noted)SYMBOL TEST CONDITIONS MIN TYP MAX UNITSICEO VCE=30V (TIP41, TIP41A) 0.7 mAICEO VCE=60V (TI
