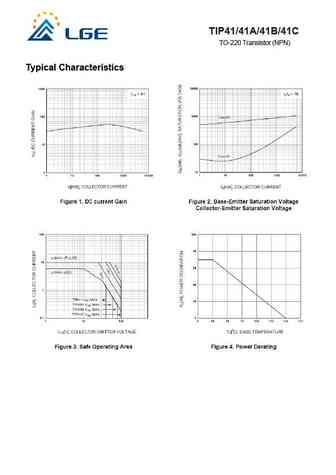

TIP41/41A/41B/41C TO-220 Transistor (NPN)TO-2201. BASE 2. COLLECTOR 3. EMITTER 3 21Features Medium Power Linear Switching Applications MAXIMUM RATINGS (TA=25 unless otherwise noted) Dimensions in inches and (millimeters)Symbol Parameter TIP41 TIP41A TIP41B TIP41C Units VCBO Collector-Base Voltage 40 60 80 100 V VCEO Collector-Emitter Voltage 40 60 80 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current -Continuous 6 A PC Collector Power Dissipation 2 W TJ Junction Temperature 150 Tstg Storage Temperature Range -55to+150 ELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN MAX UNIT Collector-base breakdown voltage TIP41 40 TIP41A 60 V(BR)CBO IC= 1mA, IE=0 VTIP41B 80 TIP41C 100 Collector-emitter breakdown voltage TIP41 40 TIP41A 60 V(BR)CEO IC= 30mA, IB=0
