View tip41a tip42a datasheet:

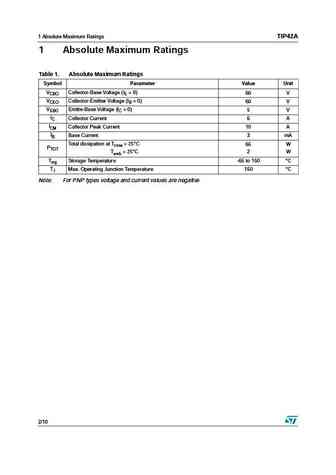

TIP41ATIP42ACOMPLEMENTARY SILICON POWER TRANSISTORFeatures COMPLEMENTARY PNP-NPN DEVICES NEW ENHANCED SERIES HIGH SWITCHING SPEED hFE IMPROVED LINEARITY32Applications1 GENERAL PURPOSE CIRCUITSTO-220 AUDIO AMPLIFIER POWER LINEAR AND SWITCHINGDescriptionInternal Schematic DiagramThe TIP41A is a silicon base island technologyNPN power transistor Jedec TO-220 plasticpackage with improved performances than theindustry standard TIP41A that make this devicesuitable for audio, power linear and switchingapplications. The complementary PNP type isTIP42A.Order CodesPart Number Marking Package PackingTIP41A TIP41A TO-220 TUBETIP42A TIP42A TO-220 TUBErev.1October 2005 1/10www.st.com 101 Absolute Maximum Ratings TIP42A1 Absolute Maximum RatingsTable 1. Absolute Maximum Ratings Symbol Parameter Value UnitVC
