View tip41c datasheet:

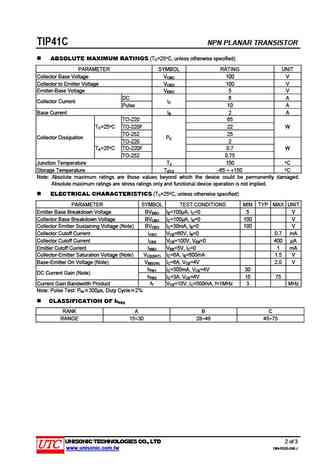

UNISONIC TECHNOLOGIES CO., LTD TIP41C NPN PLANAR TRANSISTOR NPN EXPITAXIAL PLANAR TRANSISTOR DESCRIPTION The UTC TIP41C is a NPN expitaxial planar transistor, designed for using in general purpose amplifier and switching applications. FEATURE * Complement to TIP42C SYMBOL ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3TIP41CL-x-TA3-T TIP41CG-x-TA3-T TO-220 B C E TubeTIP41CL-x-TF3-T TIP41CG-x-TF3-T TO-220F B C E TubeTIP41CL-x-TN3-T TIP41CG-x-TN3-T TO-252 B C E TubeTIP41CL-x-TN3-R TIP41CG-x-TN3-R TO-252 B C E Tape ReelNote: Pin Assignment: B: Base C: Collector E: Emitter MARKING www.unisonic.com.tw 1 of 3 Copyright 2016 Unisonic Technologies Co., Ltd QW-R203-008.J TIP41C NPN PLANAR TRANSISTOR ABSOLUTE MAXIMUM RATINGS (TC=25C, unless otherwise specified) PARAM
