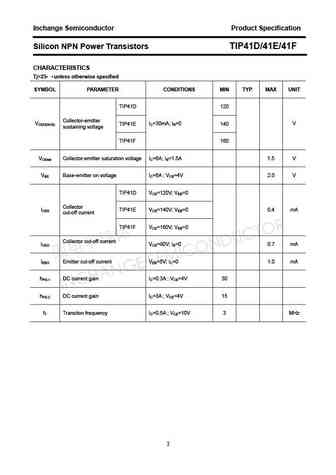

Inchange Semiconductor Product Specification Silicon NPN Power Transistors TIP41D/41E/41F DESCRIPTION With TO-220C package Complement to type TIP42D/42E/42F APPLICATIONS For medium power linear switching applications PINNING PIN DESCRIPTION1 Base Collector;connected to 2 mounting base 3 EmitterAbsolute maximum ratings(Tc=25) SYMBOL PARAMETER CONDITIONS VALUE UNITTIP41D 160VCBO Collector-base voltage TIP41E Open emitter 180 V TIP41F 200 TIP41D 120VCEO Collector-emitter voltage TIP41E Open base 140 V TIP41F 160 VEBO Emitter-base voltage Open collector 5 V IC Collector current (DC) 6 A ICM Collector current-Pulse 10 AIB Base current 3 ATC=25 65 PC Collector power dissipation W Ta=25 2 Tj Junction temperature 150 Tstg Storage temperature -65~150 INCHANGE SEMICONDUCTORInchange Semic
