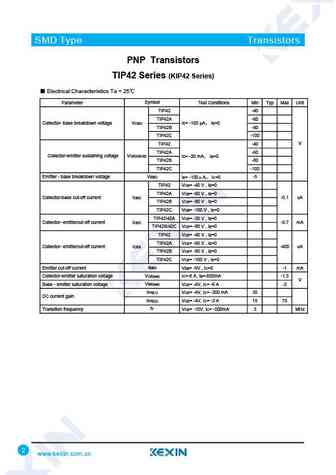

SMD Type TransistorsPNP TransistorsTIP42 Series (KIP42 Series)TO-252Unit: mm+0.156.50-0.15+0.12.30 -0.1+0.25.30-0.2 +0.8 Features0.50 -0.7 Medium Power Linear Switching Applications Complement to TIP41/41A/41B/41C0.127+0.10.80-0.1max+ 0.11 Base2.3 0.60- 0.1+0.154.60 -0.152 Collector3 Emitter Absolute Maximum Ratings Ta = 25Parameter Symbol TIP42 TIP42A TIP42B TIP42C Unit Collector - Base Voltage VCBO -40 -60 -80 -100 Collector - Emitter Voltage VCEO -40 -60 -80 -100 V Emitter - Base Voltage VEBO -5 Collector Current - Continuous IC -6 Collector Current - Pulse ICP -10 A Base Current IB 2 Collector Power Dissipation Tc=25C 20PC W Ta=25C 2 Junction Temperature TJ 150 Storage Temperature range Tstg -65 to 1501www.kexin.com.cn+0.151.50-0.153.80+0.2+0.155.559.70-0
