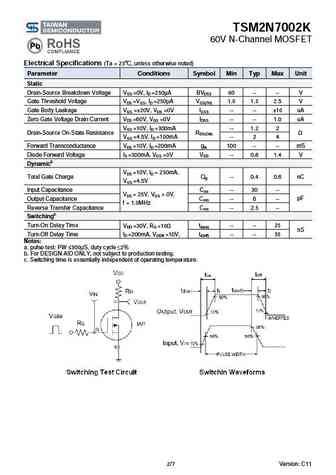

TSM2N7002K 60V N-Channel MOSFET SOT-23 SOT-323 PRODUCT SUMMARY Pin Definition: 1. Gate VDS (V) RDS(on)() ID (mA) 2. Source 3. Drain 2 @ VGS = 10V 300 60 4 @ VGS = 4.5V 200 Features Block Diagram Low On-Resistance ESD Protected 2KV High Speed Switching Low Voltage Drive Ordering Information Part No. Package Packing TSM2N7002KCX RF SOT-23 3Kpcs / 7 Reel TSM2N7002KCX RFG SOT-23 3Kpcs / 7 Reel TSM2N7002KCU RF SOT-323 3Kpcs / 7 Reel N-Channel MOSFET TSM2N7002KCU RFG SOT-323 3Kpcs / 7 Reel Note: G denotes for Halogen Free Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS 20 V Continuous @ TA=25C ID 300 Drain Current mA Pulsed IDM 800 Continuous @ TA=25C IDR 300 Drain Reverse Current mA Pulse
