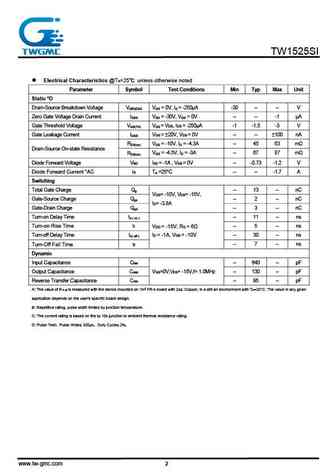

TW1525SI P-Channel Enhancement Mode Power MOSFET Features General Description VDS = -30V, Power Management in Notebook Computer ID = -4.3A Portable Equipment and Battery Powered Systems RDS(ON) @VGS= -10V, TYP 45m RDS(ON) @VGS= -4.5V, TYP 67m Pin Configurations SOT-23 Absolute Maximum Ratings @T =25 unless otherwise noted AParameter Symbol Ratings Unit Drain-Source Voltage VDSS -30 V Gate-Source Voltage VGSS 20 V TA=25C -4.3 Drain Current (Continuous) *AC ID A TA=70 -3 C Drain Current (Pulse) *B IDM -15.2 A Power Dissipation TA=25C PD 1.25 W Operating Temperature/ Storage Temperature TJ/TSTG -55~150 Thermal Resistance Ratings Parameter Symbol Typical Maximum Unit Maximum Junction-to-Ambient t 5s R 80 100 /W thJA www.tw-gmc.com 1TW1525SI Electrical Characteristics @T =25
