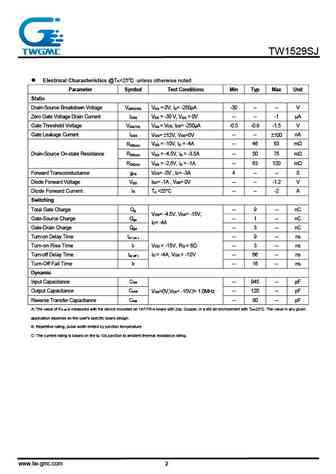

TW1529SJP-Channel Enhancement Mode Power MOSFET Features General Description VDS = -30V, Load Switch ID = -4A PWM RDS(ON) @VGS= -10V, TYP 46m RDS(ON) @VGS= -4.5V, TYP 50m RDS(ON) @VGS= -2.5V, TYP 63m Pin Configurations SOT23-3L Absolute Maximum Ratings @T =25 unless otherwise noted AParameter Symbol Ratings Unit Drain-Source Voltage VDSS -30 V Gate-Source Voltage VGSS 12 V TA=25C -4 Drain Current (Continuous) *AC ID A TA=70 -3.2 C Drain Current (Pulse) *B IDM -15 A Power Dissipation TA=25C PD 1.25 W Operating Temperature/ Storage Temperature TJ/TSTG -55~150 Thermal Resistance Ratings Parameter Symbol Maximum Unit Maximum Junction-to-Ambient t 5S R 100 C/W thJA www.tw-gmc.com 1TW1529SJ Electrical Characteristics @T =25 unless otherwise noted A Parameter Sy
