View ygw40n65f1 datasheet:

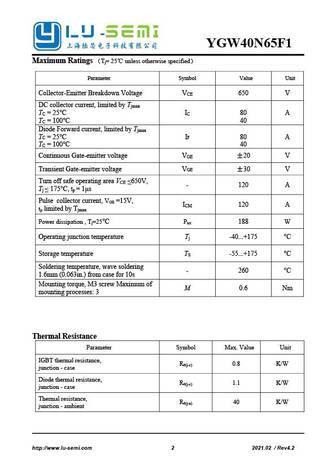

YGW40N65F1 650V /40A Trench Field Stop IGBT FEATURES V 650 V CE High breakdown voltage up to 650V for I 40 A Cimproved reliability V I =40A 1.80 V CE(SAT) C Trench-Stop Technology offering : High speed switching High ruggedness, temperature stable Low V CEsat Easy parallel switching capability due to positive temperature coefficient in V CEsat Enhanced avalanche capability APPLICATION Uninterruptible Power Supplies Inverter Welding Converters PFC applications Converter with high switching frequency Product Package Packaging YGW40N65F1 TO247 Tube http://www.lu-semi.com 1 2020.02 / Rev4.2 YGW40N65F1 Maximum Ratings T = 25 unless otherwise specified jParameter Symbol Value Unit Collector-Emitter Breakdown Voltage V 650 V CEDC collector current, limited by T jma
