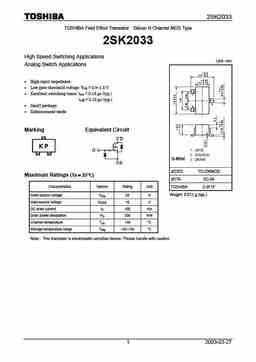

2SK2033 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type 2SK2033 High Speed Switching Applications Unit: mm Analog Switch Applications � High input impedance. � Low gate threshold voltage: V = 0.5~1.5 V th � Excellent switching times: t = 0.16 �s (typ.) on t = 0.15 �s (typ.) off � Small package. � Enhancement-mode Marking Equivalent Circuit JEDEC TO-236MOD Maximum Ratings (Ta = = 25�C) = = JEITA SC-59 Characteristics Symbol Rating Unit TOSHIBA 2-3F1F Weight: 0.012 g (typ.) Drain-source voltage VDS 20 V Gate-source voltage VGSS 10 V DC drain current ID 100 mA Drain power dissipation PD 200 mW Channel temperature Tch 150 �C Storage temperature range Tstg -55~150 �C Note: This transistor is electrostatic sensitive device. Please handle wi
