74ahc_ahct139_1

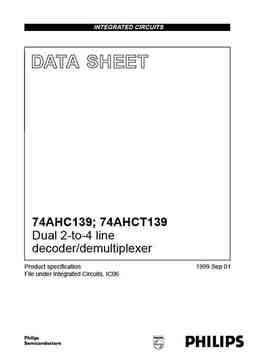

INTEGRATED CIRCUITS DATA SHEET 74AHC139; 74AHCT139 Dual 2-to-4 line decoder/demultiplexer Product specification 1999 Sep 01 File under Integrated Circuits, IC06 Philips Semiconductors Product specification 74AHC139; Dual 2-to-4 line decoder/demultiplexer 74AHCT139 FEATURES DESCRIPTION � ESD protection: The 74AHC/AHCT139 are high-speed Si-gate CMOS HBM EIA/JESD22-A114-A exceeds 2000 V devices and are pin compatible with low power Schottky MM EIA/JESD22-A115-A exceeds 200 V TTL (LSTTL). They are specified in compliance with CDM EIA/JESD22-C101 exceeds 1000 V JEDEC standard no. 7A. � Balanced propagation delays The 74AHC/AHCT139 are high-speed, dual 2-to-4 line decoder/demultiplexers. � All inputs have Schmitt trigger actions � Inputs accept voltages higher than VCC This
