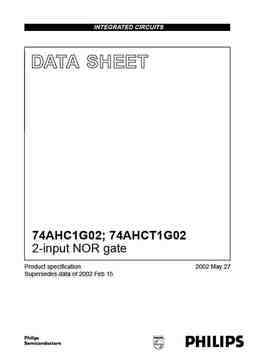

INTEGRATED CIRCUITS DATA SHEET 74AHC1G02; 74AHCT1G02 2-input NOR gate Product specification 2002 May 27 Supersedes data of 2002 Feb 15 Philips Semiconductors Product specification 2-input NOR gate 74AHC1G02; 74AHCT1G02 FEATURES DESCRIPTION � Symmetrical output impedance The 74AHC1G/AHCT1G02 is a high-speed Si-gate CMOS device. � High noise immunity The 74AHC1G/AHCT1G02 provides the 2-input NOR � ESD protection: function. � HBM EIA/JESD22-A114-A exceeds 2000 V � MM EIA/JESD22-A115-A exceeds 200 V � CDM EIA/JESD22-C101 exceeds 1000 V. � Low power dissipation � Balanced propagation delays � Very small 5-pin package � Output capability: standard � Specified from -40 to +125 �C. QUICK REFERENCE DATA GND = 0 V; Tamb =25�C; tr =tf ? 3.0 ns. TYPICAL SYMBOL PARAMETER COND
