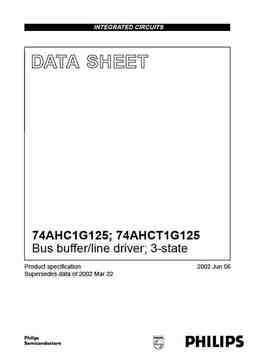

INTEGRATED CIRCUITS DATA SHEET 74AHC1G125; 74AHCT1G125 Bus buffer/line driver; 3-state Product specification 2002 Jun 06 Supersedes data of 2002 Mar 22 Philips Semiconductors Product specification Bus buffer/line driver; 3-state 74AHC1G125; 74AHCT1G125 FEATURES DESCRIPTION � Symmetrical output impedance The 74AHC1G/AHCT1G125 is a high-speed Si-gate CMOS device. � High noise immunity The 74AHC1G/AHCT1G125 provides one non-inverting � ESD protection: buffer/line driver with 3-state output. The 3-state output is � HBM EIA/JESD22-A114-A exceeds 2000 V controlled by the output enable input (OE). A HIGH at OE � MM EIA/JESD22-A115-A exceeds 200 V causes the output to assume a high-impedance � CDM EIA/JESD22-C101 exceeds 1000 V. OFF-state. � Low power dissipation � Balanced p
