ba592_n_1

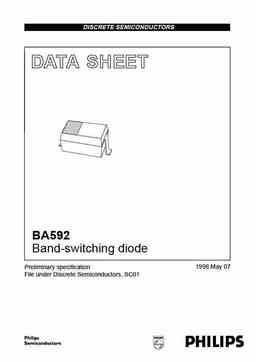

DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D049 BA592 Band-switching diode 1998 May 07 Preliminary specification File under Discrete Semiconductors, SC01 Philips Semiconductors Preliminary specification Band-switching diode BA592 FEATURES PINNING SOD323 • Small plastic SMD package PIN DESCRIPTION • Low diode capacitance 1 cathode • Low diode forward resistance 2 anode • Small inductance. APPLICATIONS ndbook, halfpage 12 • Low loss band-switching in VHF television tuners • Surface mount band-switching circuits. , Top view MAM387 DESCRIPTION Marking code: A2. Planar, high performance band-switch diode in a small SMD plastic package (SOD323). Fig.1 Simplified outline. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SY
