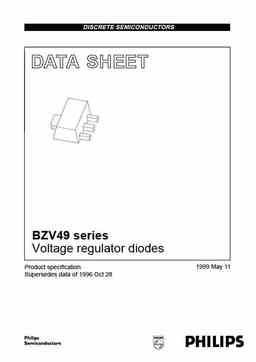

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D109 BZV49 series Voltage regulator diodes 1999 May 11 Product specification Supersedes data of 1996 Oct 28 Philips Semiconductors Product specification Voltage regulator diodes BZV49 series FEATURES PINNING • Total power dissipation: max. 1 W PIN DESCRIPTION • Tolerance series: approx. ±5% 1 anode • Working voltage range: 2 anode nom. 2.4 to 75 V (E24 range) 3 cathode • Non-repetitive peak reverse power dissipation: max. 40 W. handbook, halfpage APPLICATIONS • General regulation functions. 1 2 DESCRIPTION Medium-power voltage regulator diodes in a SOT89 plastic SMD 3 package. The diodes are available in the 1 3 2 normalized E24 approx. ±5% tolerance range. The series consists Bottom view MAM244 of 37 t
