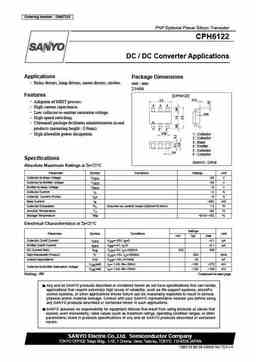

Ordering number : ENN7225 CPH6122 PNP Epitaxial Planar Silicon Transistor CPH6122 DC / DC Converter Applications Applications Package Dimensions • Relay drivers, lamp drivers, motor drivers, strobes. unit : mm 2146A Features [CPH6122] 0.15 2.9 • Adoption of MBIT process. 6 5 4 • High current capacitance. • Low collector-to-emitter saturation voltage. 0.05 • High-speed switching. • Ultrasmall package facilitates miniaturization in end products (mounting height : 0.9mm). 1 2 3 • High allowable power dissipation. 1 : Collector 0.95 2 : Collector 3 : Base 4 : Emitter 5 : Collector 0.4 6 : Collector Specifications SANYO : CPH6 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO --30 V Collector-to-Emitte
