View fss133 datasheet:

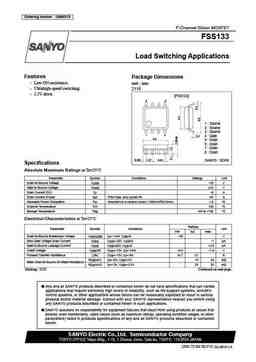

Ordering number : ENN6919 FSS133 P-Channel Silicon MOSFET FSS133 Load Switching Applications Features Package Dimensions • Low ON-resistance. unit : mm • Ultrahigh-speed switching. 2116 • 2.5V drive. [FSS133] 85 1 : Source 2 : Source 3 : Source 14 4 : Gate 0.2 5.0 5 : Drain 6 : Drain 7 : Drain 8 : Drain 0.595 1.27 0.43 SANYO : SOP8 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage VDSS --20 V Gate-to-Source Voltage VGSS ±10 V Drain Current (DC) ID --8 A Drain Current (Pulse) IDP PW?10µs, duty cycle?1% --52 A Allowable Power Dissipation PD Mounted on a ceramic board (1200mm2 0.8mm) 1.8 W Channel Temperature Tch 150 °C Storage Temperature Tstg --55 to +150 °C Electrical Characteristics at
