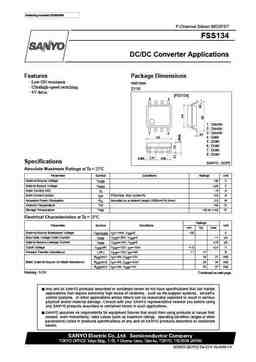

Ordering number:ENN6399 P-Channel Silicon MOSFET FSS134 DC/DC Converter Applications Features Package Dimensions · Low ON resistance. unit:mm · Ultrahigh-speed switching. 2116 · 4V drive. [FSS134] 8 5 1 : Source 2 : Source 14 3 : Source 0.2 5.0 4 : Gate 5 : Drain 6 : Drain 7 : Drain 8 : Drain 0.595 1.27 0.43 Specifications SANYO : SOP8 Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage VDSS –30 V Gate-to-Source Voltage VGSS ±20 V Drain Current (DC) ID –9 A Drain Current (pulse) IDP PW? 10µs, duty cycle? 1% –52 A Allowable Power Dissipation PD Mounted on a ceramic board (1000mm2? 0.8mm) 2.0 W Channel Temperature Tch 150 ?C Storage Temperature Tstg –55 to +150 ?C Electrical Characteristics at Ta = 25?C
