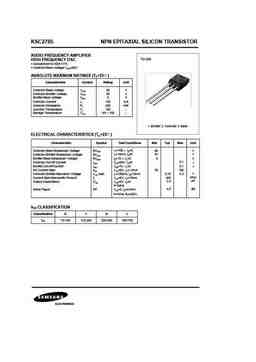

View ksc2785 datasheet:

KSC2785 NPN EPITAXIAL SILICON TRANSISTOR AUDIO FREQUENCY AMPLIFIER TO-92S HIGH FREQUENCY OSC. • Complement to KSA1175 • Collector-Base Voltage VCBO=60V ABSOLUTE MAXIMUM RATINGS (TA=25 ) Characteristic Symbol Rating Unit Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 50 V Emitter-Base Voltage VEBO 5 V Collector Current IC 150 mA Collector Dissipation PC 250 mW Junction Temperature TJ 150 Storage Temperature TSTG -55 ~ 150 1. Emitter 2. Collector 3. Base ELECTRICAL CHARACTERISTICS (TA=25 ) Characteristic Symbol Test Conditions Min Typ Max Unit Collector-Base Breakdown Voltage BVCBO IC=100 , IE=0 60 V Collector-Emitter Breakdown Voltage BVCEO IC=10mA, IB=0 50 V Emitter-Base Breakdown Voltage BVEBO IE=10 , IC=0 5 V 0.1 Collector Cut-off Current ICBO VCB=
