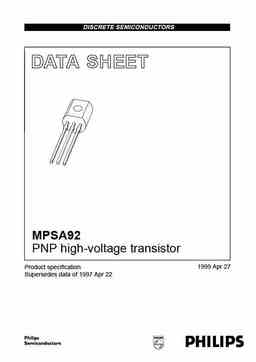

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D186 MPSA92 PNP high-voltage transistor 1999 Apr 27 Product specification Supersedes data of 1997 Apr 22 Philips Semiconductors Product specification PNP high-voltage transistor MPSA92 FEATURES PINNING � Low current (max. 500 mA) PIN DESCRIPTION � High voltage (max. 300 V). 1 collector 2 base APPLICATIONS 3 emitter � General purpose switching and amplification. DESCRIPTION 1 handbook, halfpage 1 2 PNP high-voltage transistor in a TO-92; SOT54 plastic 3 2 package. NPN complement: MPSA42. 3 MAM280 Fig.1 Simplified outline (TO-92; SOT54) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCBO collector-base voltage open e
