View mc2833 datasheet:

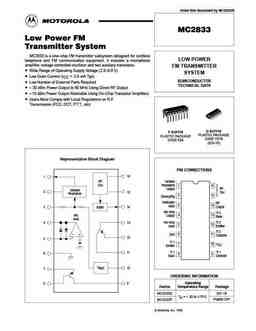

Order this document by MC2833/D MC2833 Low Power FM Transmitter System MC2833 is a one�chip FM transmitter subsystem designed for cordless LOW POWER telephone and FM communication equipment. It includes a microphone amplifier, voltage controlled oscillator and two auxiliary transistors. FM TRANSMITTER � Wide Range of Operating Supply Voltage (2.8�9.0 V) SYSTEM � Low Drain Current (ICC = 2.9 mA Typ) SEMICONDUCTOR � Low Number of External Parts Required TECHNICAL DATA � � 30 dBm Power Output to 60 MHz Using Direct RF Output � +10 dBm Power Output Attainable Using On�Chip Transistor Amplifiers � Users Must Comply with Local Regulations on R.F. Transmission (FCC, DOT, P.T.T., etc) D SUFFIX P SUFFIX PLASTIC PACKAGE PLASTIC PACKAGE CASE 751B CASE 648 (SO�16) Representat
