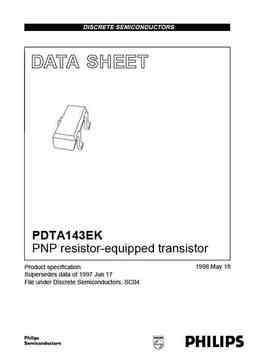

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D114 PDTA143EK PNP resistor-equipped transistor 1998 May 18 Product specification Supersedes data of 1997 Jun 17 File under Discrete Semiconductors, SC04 Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA143EK FEATURES • Built-in bias resistors R1 and R2 (typ. 4.7 k? each) 3 • Simplification of circuit design 3 • Reduces number of components R1 1 and board space. R2 2 APPLICATIONS 1 2 • Especially suitable for space Top view reduction in interface and driver MAM262 circuits. • Inverter circuit configurations without use of external resistors. Fig.1 Simplified outline (SC-59) and symbol. DESCRIPTION MARKING PNP resistor-equipped transistor in a plastic SC-59 package. TYPE
