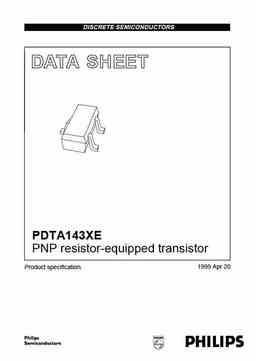

DISCRETE SEMICONDUCTORS DATA SHEET M3D173 PDTA143XE PNP resistor-equipped transistor 1999 Apr 20 Product specification Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA143XE FEATURES • Built-in bias resistors R1 and R2 (typ. 4.7 k? and 10 k? respectively) handbook, halfpage 3 3 • Simplification of circuit design R1 1 • Reduces number of components R2 and board space. 2 12 Top view MAM345 APPLICATIONS • Especially suitable for space reduction in interface and driver circuits Fig.1 Simplified outline SC-75 (SOT416) and symbol. • Inverter circuit configurations without use of external resistors. MARKING DESCRIPTION TYPE MARKING PNP resistor-equipped transistor in NUMBER CODE an SC-75 (SOT416) plastic package. 1 3 PDTA143
