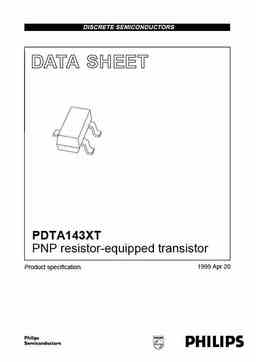

DISCRETE SEMICONDUCTORS DATA SHEET ook, halfpage M3D088 PDTA143XT PNP resistor-equipped transistor 1999 Apr 20 Product specification Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA143XT FEATURES • Built-in bias resistors R1 and R2 (typ.4.7 k? and 10 k? respectively) 3 • Simplification of circuit design handbook, 4 columns 3 • Reduces number of components R1 and board space. 1 R2 APPLICATIONS 2 • Especially suitable for space 1 2 reduction in interface and driver Top view MAM100 circuits • Inverter circuit configurations without use of external resistors. Fig.1 Simplified outline (SOT23) and symbol. DESCRIPTION MARKING PNP resistor-equipped transistor in a SOT23 plastic package. TYPE MARKING 1 3 NUMBER CODE(1) PINNING
