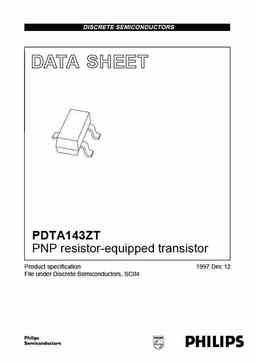

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 PDTA143ZT PNP resistor-equipped transistor Product specification 1997 Dec 12 File under Discrete Semiconductors, SC04 Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA143ZT FEATURES • Built-in bias resistors R1 and R2 (typ. 4.7 k? and 47 k? 3 handbook, 4 columns respectively) 3 • Simplification of circuit design R1 1 • Reduces number of components and board space. R2 2 APPLICATIONS 1 2 Top view MAM100 • Especially suitable for space reduction in interface and driver circuits • Inverter circuit configurations Fig.1 Simplified outline (SOT23) and symbol. without use of external resistors. DESCRIPTION MARKING PNP resistor-equipped transistor in a TYPE MARKING SOT23 p
