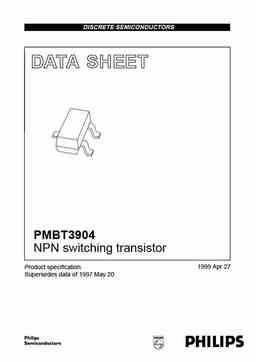

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 PMBT3904 NPN switching transistor 1999 Apr 27 Product specification Supersedes data of 1997 May 20 Philips Semiconductors Product specification NPN switching transistor PMBT3904 FEATURES PINNING • Low current (max. 100 mA) PIN DESCRIPTION • Low voltage (max. 40 V). 1 base 2 emitter APPLICATIONS 3 collector • Telephony and professional communication equipment. DESCRIPTION handbook, halfpage 3 NPN switching transistor in a SOT23 plastic package. 3 PNP complement: PMBT3906. 1 MARKING 2 TYPE NUMBER MARKING CODE(1) 1 2 PMBT3904 ?1A Top view MAM255 Note 1. ? = p : Made in Hong Kong. Fig.1 Simplified outline (SOT23) and symbol. ? = t : Made in Malaysia. LIMITING VALUES In accordance with the Absolute
