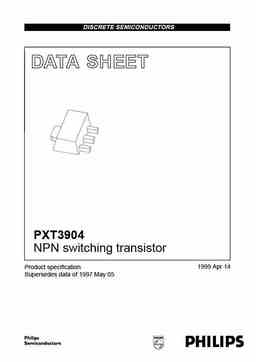

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D109 PXT3904 NPN switching transistor 1999 Apr 14 Product specification Supersedes data of 1997 May 05 Philips Semiconductors Product specification NPN switching transistor PXT3904 FEATURES PINNING • Low current (max. 100 mA) PIN DESCRIPTION • Low voltage (max. 40 V). 1 emitter 2 collector APPLICATIONS 3 base • High-speed switching. handbook, halfpage DESCRIPTION 2 NPN switching transistor in a SOT89 plastic package. PNP complement: PXT3906. 3 1 MARKING 1 2 3 TYPE NUMBER MARKING CODE Bottom view MAM296 PXT3904 p1A Fig.1 Simplified outline (SOT89) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCBO collector-base v
