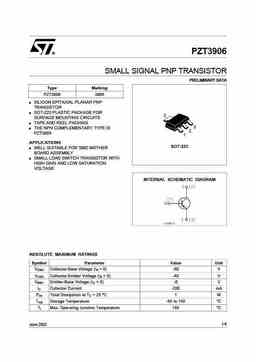

PZT3906 ® SMALL SIGNAL PNP TRANSISTOR PRELIMINARY DATA Type Marking PZT3906 3906 SILICON EPITAXIAL PLANAR PNP TRANSISTOR SOT-223 PLASTIC PACKAGE FOR 2 SURFACE MOUNTING CIRCUITS TAPE AND REEL PACKING 3 THE NPN COMPLEMENTARY TYPE IS 2 PZT3904 1 APPLICATIONS SOT-223 WELL SUITABLE FOR SMD MOTHER BOARD ASSEMBLY SMALL LOAD SWITCH TRANSISTOR WITH HIGH GAIN AND LOW SATURATION VOLTAGE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit VCBO Collector-Base Voltage (IE = 0) -60 V VCEO Collector-Emitter Voltage (IB = 0) -40 V VEBO Emitter-Base Voltage (IC = 0) -6 V IC Collector Current -200 mA P Total Dissipation at T = 25 oC1 W tot C o Tstg Storage Temperature -65 to 150 C o Tj Max. Operating Junction Temperature 150 C 1/4 June
