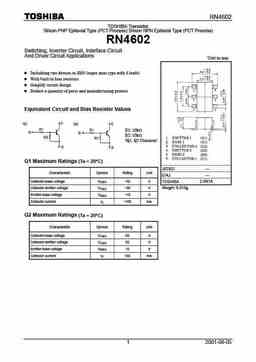

RN4602 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process) RN4602 Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Unit in mm Includeing two devices in SM6 (super mini type with 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Equivalent Circuit and Bias Resister Values R1: 10k? R2: 10k? (Q1, Q2 Common) Q1 Maximum Ratings (Ta = 25° °C) ° ° JEDEC ? Characteristic Symbol Rating Unit EIAJ ? Collector-base voltage VCBO -50 V 2-3N1A TOSHIBA Weight: 0.015g Collector-emitter voltage VCEO -50 V Emitter-base voltage VEBO -10 V Collector current IC -100 mA Q2 Maximum Ratings (Ta = 25° °C) ° ° Char
