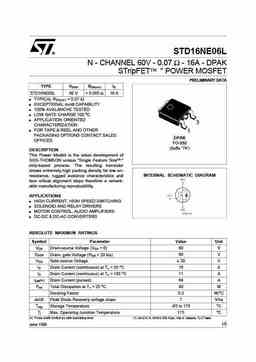

STD16NE06L ® N - CHANNEL 60V - 0.07 ? - 16A - DPAK STripFET? " POWER MOSFET PRELIMINARY DATA TYPE VDSS RDS(on) ID STD16NE06L 60 V < 0.085 ? 16 A TYPICAL R = 0.07 ? DS(on) EXCEPTIONAL dv/dt CAPABILITY 100% AVALANCHE TESTED LOW GATE CHARGE 100 oC APPLICATION ORIENTED 3 CHARACTERIZATION FOR TAPE & REEL AND OTHER 1 PACKAGING OPTIONS CONTACT SALES DPAK OFFICES TO-252 (Suffix "T4") DESCRIPTION This Power Mosfet is the latest development of SGS-THOMSON unique "Single Feature Size? " strip-based process. The resulting transistor shows extremely high packing density for low on- INTERNAL SCHEMATIC DIAGRAM resistance, rugged avalance characteristics and less critical alignment steps therefore a remark- able manufacturing reproducibility. APPLICATIONS HIGH C
