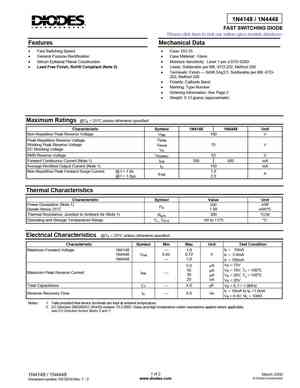

1n4148_1n4448

1N4148 / 1N4448 FAST SWITCHING DIODE Please click here to visit our online spice models database. Features Mechanical Data • Fast Switching Speed • Case: DO-35 • General Purpose Rectification • Case Material: Glass • Silicon Epitaxial Planar Construction • Moisture Sensitivity: Level 1 per J-STD-020D • Lead Free Finish, RoHS Compliant (Note 2) • Leads: Solderable per MIL-STD-202, Method 208 • Terminals: Finish ⎯ Sn96.5Ag3.5. Solderable per MIL-STD- 202, Method 208 • Polarity: Cathode Band • Marking: Type Number • Ordering Information: See Page 2 • Weight: 0.13 grams (approximate) Maximum Ratings @TA = 25°C unless otherwise specified Characteristic Symbol 1N4148 1N4448 Unit Non-Repetitive Peak Reverse Voltage VRM 100 V VRRM Pe
