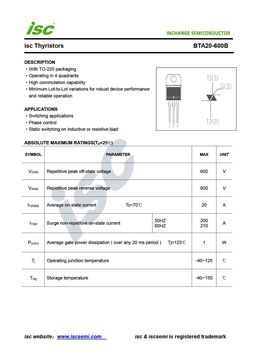

INCHANGE Semiconductor isc Thyristors BTA20-600B DESCRIPTION With TO-220 packaging Operating in 4 quadrants High commutation capability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching applications Phase control Static switching on inductive or resistive load ABSOLUTE MAXIMUM RATINGS(T =25 ) a SYMBOL PARAMETER MAX UNIT V Repetitive peak off-state voltage 600 V DRM V Repetitive peak reverse voltage 600 V RRM I Average on-state current Tc=70 20 A T(RSM) 50HZ 200 I Surge non-repetitive on-state current A TSM 60HZ 210 P Average gate power dissipation ( over any 20 ms period ) Tj=125 1 W G(AV) T Operating junction temperature -40 125 j T Storage temperature -40 150 stg isc we... See More ⇒
