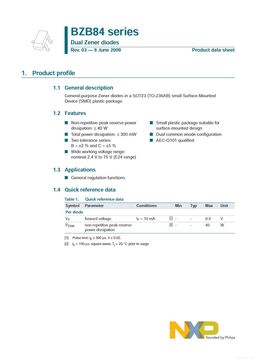

BZB84 series Dual Zener diodes Rev. 03 9 June 2009 Product data sheet 1. Product profile 1.1 General description General-purpose Zener diodes in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. 1.2 Features Non-repetitive peak reverse power Small plastic package suitable for dissipation 40 W surface-mounted design Total power dissipation 300 mW Dual common anode configuration Two tolerance series AEC-Q101 qualified B= 2%andC= 5% Wide working voltage range nominal 2.4 V to 75 V (E24 range) 1.3 Applications General regulation functions 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per diode [1] VF forward voltage IF =10mA - - 0.9 V [2] PZSM non-repetitive peak reverse... See More ⇒
