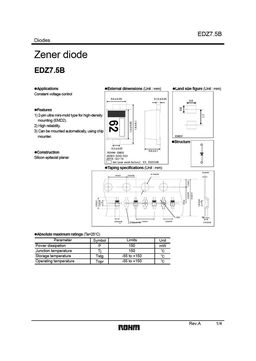

EDZ7.5B Diodes Zener diode EDZ7.5B Applications External dimensions (Unit : mm) Land size figure (Unit : mm) Constant voltage control 0.8±0.05 0.12±0.05 0.8 Features 1) 2-pin ultra mini-mold type for high-density mounting (EMD2). 2) High reliability. 3) Can be mounted automatically, using chip EMD2 mounter. Structure 0.3±0.05 0.6±0.1 Construction ROHM : EMD2 JEDEC :SOD-523 Silicon epitaxial planar JEITA : SC-79 dot (year week factory) EX. EDZ3.6B Taping specifications (Unit : mm) 0.2±0.05 φ1.5±0.05 4.0±0.1 2.0±0.05 0.2 φ0.5 0.95±0.06 4.0±0.1 2.0±0.05 空ポケット Empty pocket 0.76±0.05 0 Absolute maximum ratings (Ta=25°C) Parameter Limits Symbol Unit Power dissipation PmW 150 Junction temperature Tj 150
