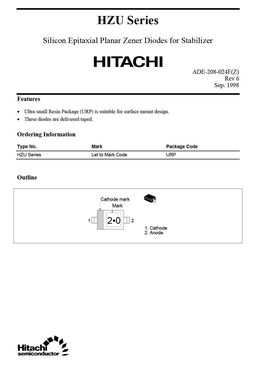

HZU Series Silicon Epitaxial Planar Zener Diodes for Stabilizer ADE-208-024F(Z) Rev 6 Sep. 1998 Features • Ultra small Resin Package (URP) is suitable for surface mount design. • These diodes are delivered taped. Ordering Information Type No. Mark Package Code HZU Series Let to Mark Code URP Outline Cathode mark Mark 12 2•0 1. Cathode 2. Anode HZU Series Absolute Maximum Ratings (Ta = 25°C) Item Symbol Value Unit Power dissipation Pd *1 200 mW Junction temperature Tj 150 ° C Storage temperature Tstg -55 to +150 ° C Note: 1. With P.C. Board. Electrical Characteristics (Ta = 25°C) Zener Voltage Reverese Current Dynamic Resistance Test Test Test VZ (V)*1 Condition IR (µ A) Condition rd (Ω ) Condition Type Grade Min Max IZ (mA) Max VR (V) Max IZ (m
