View smbj1xx smbj2xx smbj3xx smbj4xx smbj5xx smbj6xx smbj7xx smbj8xx smbj9xx series detailed specifications:

POWER MOSFET, IGBT, IC, TRIACS DATABASE

smbj1xx_smbj2xx_smbj3xx_smbj4xx_smbj5xx_smbj6xx_smbj7xx_smbj8xx_smbj9xx_series

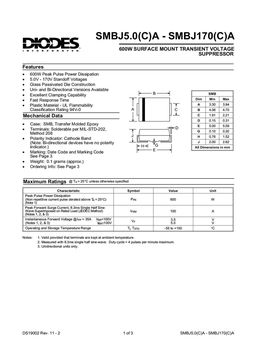

SMBJ5.0(C)A - SMBJ170(C)A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Features 600W Peak Pulse Power Dissipation 5.0V - 170V Standoff Voltages Glass Passivated Die Construction Uni- and Bi-Directional Versions Available B SMB Excellent Clamping Capability Dim Min Max Fast Response Time A 3.30 3.94 Plastic Material - UL Flammability Classification Rating 94V-0 A C B 4.06 4.70 C 1.91 2.21 Mechanical Data D 0.15 0.31 Case SMB, Transfer Molded Epoxy E 5.00 5.59 D Terminals Solderable per MIL-STD-202, G 0.10 0.20 Method 208 J H 0.76 1.52 Polarity Indicator Cathode Band J 2.00 2.62 (Note Bi-directional devices have no polarity G H indicator.) All Dimensions in mm E Marking Date Code and Marking Code See Page 3 Weight 0.1 grams (approx... See More ⇒
