2n2219 2n2219a 3.pdf datasheet:

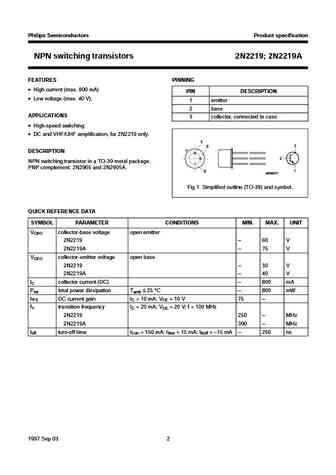

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1112N2219; 2N2219ANPN switching transistors1997 Sep 03Product specificationSupersedes data of 1997 May 07File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationNPN switching transistors 2N2219; 2N2219AFEATURES PINNING High current (max. 800 mA)PIN DESCRIPTION Low voltage (max. 40 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case High-speed switching DC and VHF/UHF amplification, for 2N2219 only.1handbook, halfpage32DESCRIPTION2NPN switching transistor in a TO-39 metal package.PNP complement: 2N2905 and 2N2905A.13MAM317Fig.1 Simplified outline (TO-39) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter2N2219 - 60 V2N2219A - 75 VVCEO collector-emit
