2n3789 2n3790 2n3791 2n3792.pdf datasheet:

2n3789_2n3790_2n3791_2n37922n3789_2n3790_2n3791_2n3792

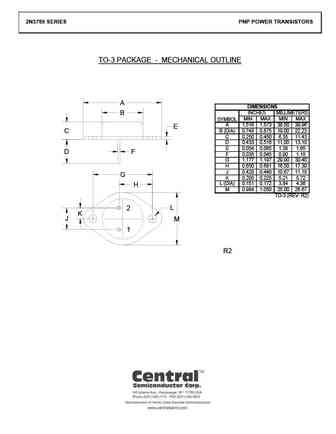

DATA SHEET2N3789 2N3790 2N3791 2N3792 PNP POWER TRANSISTORS JEDEC TO-3 CASE DESCRIPTION The CENTRAL SEMICONDUCTOR 2N3789 Series types are silicon power transistors manufactured by the epitaxial planar process and designed for medium speed switching and amplifier applications. MAXIMUM RATINGS (TC=25C unless otherwise noted) 2N3789 2N3790 SYMBOL 2N3791 2N3792 UNITS Collector-Base Voltage VCBO 60 80 V Collector-Emitter Voltage VCEO 60 80 V Emitter-Base Voltage VEBO 7.0 VCollector Current IC 10 A Base Current IB 4.0 APower Dissipation PD 150 WOperating and Storage Junction Temperature TJ,Tstg -65 to +200 C Thermal Resistance JC 1.17 C/WELECTRICAL CHARACTERISTICS (TC=25C unless otherwise noted) 2N3789 2N37902N3791 2N3792SYMBOL TEST CONDITIONS MIN MAX MIN MAX UNITS ICEV VCE= Rated VCEO, VEB=1.5V 1.0 1.0 mA ICEV VCE= Rated VCEO,
