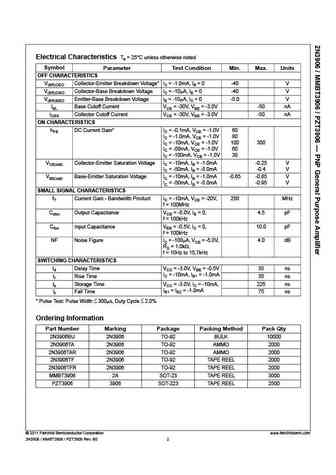

2n3906.pdf datasheet:
October 20112N3906 / MMBT3906 / PZT3906PNP General Purpose AmplifierFeatures This device is designed for general purpose amplifier and switching applications at collector currents of 10A to 100 mA.2N3906 PZT3906MMBT3906CCEECBTO-92 SOT-23 SOT-223BMark:2AEBCAbsolute Maximum Ratings* Ta = 25C unless otherwise noted Symbol Parameter Value UnitsVCEO Collector-Emitter Voltage -40 VVCBO Collector-Base Voltage -40 VVEBO Emitter-Base Voltage -5.0 VIC Collector Current - Continuous -200 mATJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 C* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.NOTES:1) These ratings are based on a maximum junction temperature of 150 degrees C.2) These are steady state limits. The factory should be consulted on applications
