2n4416-a.pdf datasheet:

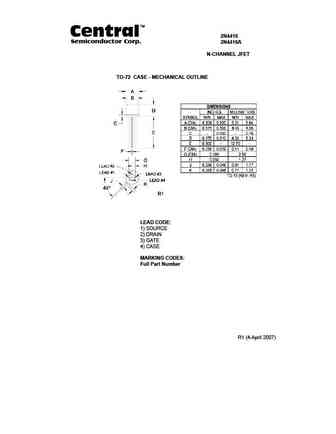

TM2N4416Central2N4416ASemiconductor Corp.N-CHANNEL JFETDESCRIPTION:The CENTRAL SEMICONDUCTOR 2N4416 and2N4416A are silicon N-Channel Junction FieldEffect Transistors designed for VHF amplifier andmixer applications.MARKING CODE:Full Part NmberJEDEC TO-72 CASEMAXIMUM RATINGS: (TA=25C)SYMBOL 2N4416 2N4416A UNITSGate-Drain Voltage VGD 30 35 VGate-Source Voltage VGS 30 35 VDrain-Source Voltage VDS 30 35 VGate Current IG 10 10 mAPower Dissipation PD 300 300 mWOperating and StorageJunction Temperature TJ,Tstg -65 to +200 CELECTRICAL CHARACTERISTICS: (TA=25C unless otherwise noted)2N4416 2N4416ASYMBOL TEST CONDITIONS MIN MAX MIN MAX UNITSIGSS VGS=20V, VDS=0V - 0.1 -- 0.1 nAIGSS VGS=20V, VDS=0V, TA=150C - 0.1 0.1 AIDSS VDS=15V, VGS=0V 5.0 15 5.0 15 mABVGSS VDS=0V, IG=1.0A 30 - 35 - VVGS(OFF) VDS=15V, ID=1.0nA - 6.0 2.5 6.
