2n5401.pdf datasheet:

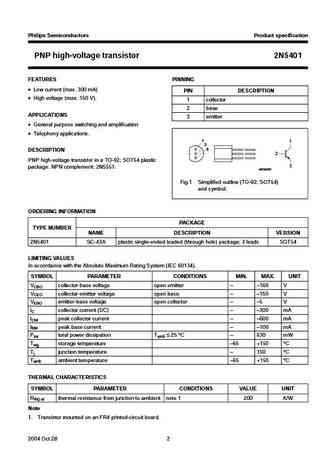

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1862N5401PNP high-voltage transistorProduct specification 2004 Oct 28Supersedes data of 1999 Apr 08Philips Semiconductors Product specificationPNP high-voltage transistor 2N5401FEATURES PINNING Low current (max. 300 mA)PIN DESCRIPTION High voltage (max. 150 V).1 collector2 baseAPPLICATIONS3 emitter General purpose switching and amplification Telephony applications.1handbook, halfpage123DESCRIPTION2PNP high-voltage transistor in a TO-92; SOT54 plastic3package. NPN complement: 2N5551.MAM280Fig.1 Simplified outline (TO-92; SOT54)and symbol.ORDERING INFORMATIONPACKAGETYPE NUMBERNAME DESCRIPTION VERSION2N5401 SC-43A plastic single-ended leaded (through hole) package; 3 leads SOT54LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IE
