2n5415 2n5416 cnv 2.pdf datasheet:

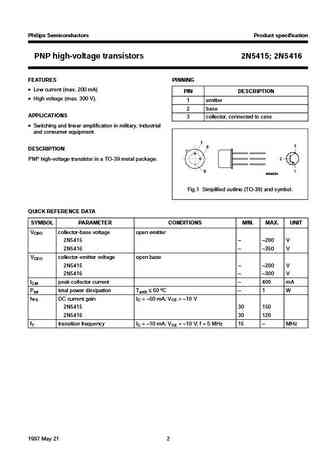

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1112N5415; 2N5416PNP high-voltage transistors1997 May 21Product specificationSupersedes data of September 1994File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationPNP high-voltage transistors 2N5415; 2N5416FEATURES PINNING Low current (max. 200 mA)PIN DESCRIPTION High voltage (max. 300 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case Switching and linear amplification in military, industrialand consumer equipment.1handbook, halfpage32DESCRIPTION2PNP high-voltage transistor in a TO-39 metal package.13MAM334Fig.1 Simplified outline (TO-39) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter2N5415 --200 V2N5416 --350 VVCEO collector-emitter voltage op
