2pb710a.pdf datasheet:

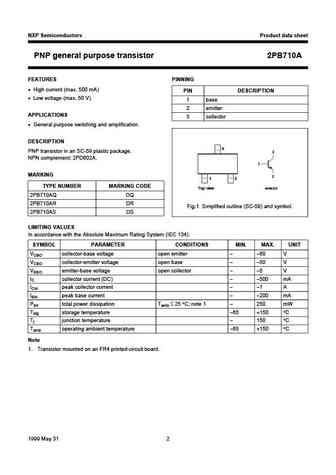

DISCRETE SEMICONDUCTORS DATA SHEETdbook, halfpageM3D1142PB710APNP general purpose transistorProduct data sheet 1999 May 31Supersedes data of 1999 Apr 23 NXP Semiconductors Product data sheetPNP general purpose transistor 2PB710AFEATURES PINNING High current (max. 500 mA)PIN DESCRIPTION Low voltage (max. 50 V).1 base2 emitterAPPLICATIONS3 collector General purpose switching and amplification.DESCRIPTIONhandbook, halfpage3PNP transistor in an SC-59 plastic package. 3NPN complement: 2PD602A.1MARKING212TYPE NUMBER MARKING CODETop view MAM3222PB710AQ DQ2PB710AR DRFig.1 Simplified outline (SC-59) and symbol.2PB710AS DSLIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter - -60 VVCEO collector-emitte
