2pc945 3.pdf datasheet:

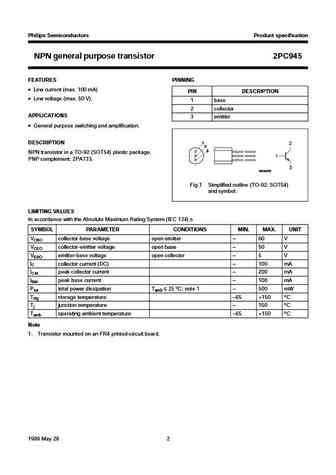

DISCRETE SEMICONDUCTORSDATA SHEETndbook, halfpageM3D1862PC945NPN general purpose transistor1999 May 28Product specificationSupersedes data of 1997 Mar 26Philips Semiconductors Product specificationNPN general purpose transistor 2PC945FEATURES PINNING Low current (max. 100 mA)PIN DESCRIPTION Low voltage (max. 50 V).1 base2 collectorAPPLICATIONS3 emitter General purpose switching and amplification.DESCRIPTION 1handbook, halfpage223NPN transistor in a TO-92 (SOT54) plastic package.1PNP complement: 2PA733.3MAM259Fig.1 Simplified outline (TO-92; SOT54)and symbol.LIMITING VALUESIn accordance with the Absolute Maximum Rating System (IEC 134).sSYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter - 60 VVCEO collector-emitter voltage open base - 50 VVEBO emitter-base voltage open co
