2sa1102.pdf datasheet:

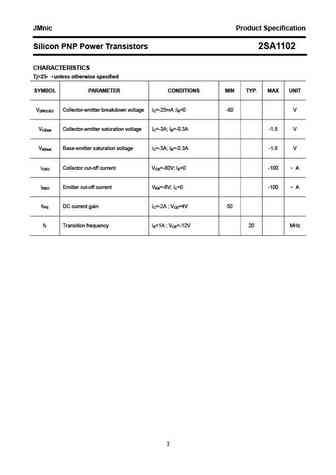

JMnic Product Specification Silicon PNP Power Transistors 2SA1102 DESCRIPTION With TO-3PN package Complement to type 2SC2577 High current capability High power dissipation APPLICATIONS Audio power amplifer applications DC-DC converters PINNING PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (TO-3PN) and symbol 3 EmitterAbsolute maximum ratings(Ta=) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -80 V VCEO Collector-emitter voltage Open base -80 V VEBO Emitter-base voltage Open collector -6 V IC Collector current -6 A PC Collector power dissipation TC=25 60 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1102 CHARACTERISTICS Tj=25 unless otherwise specif
